Description
Features
Haldex Controller modes
OFF mode
Turn the Haldex completely off including the pre charge pump. The car will drive like any normal 2WD car.
Locked mode
Lock the Haldex to a fixed value with the App no matter what the car does the Haldex will always stay at the selected power split. Can be adjusted in steps of 10%. 100/0, 90/0, 80/0, 70/30, 60/40, 50/50.
100 / 0 is 0% to the haldex unit but the pre charge pump is still active.
Throttle mode
The Haldex power is set by the custom configured value at a certain throttle position. Throttle position in steps of 10%.
0 – 10% 50 / 50
10 – 20% 60 / 40
20 – 30% 50 / 40
Speed mode
The Haldex power is set by the custom configured value at a certain speed. Speed in steps of 20 km/h.
0 – 20 km/h 50 / 50
20 – 40 km/h 60 / 40
40 – 60 km/h 50 / 40
Boost mode
The Haldex power is set by the custom configured value at a certain boost value. Boost value in steps of 250 mBar.
MAP mode
A more advanced mode that will use both throttle and speed input signal.
Extra advanced option for steering angle.
Track mode
Mode for track race. this mode uses norm. throttle, steering angle and speed. fully customizable.
Advanced features like brake settings and lock hold.
Passthru mode
The Haldex will run like stock.
The App will shows the current Haldex power generated by the Haldex.
Standalone functions
Analog Inputs
- Throttle – 5V
- Speed – 12v Vss
- Boost – 5V
- Brake – 12V
- Handbrake – Ground
Brake input
When the brake signal is applied, the Haldex will be set to 100/0 so no torque is applied to the rear wheels.
Brake Ignore is also possible.
Handbrake input
When the handbrake signal is applied the Haldex will be disabled including the pre charge pump.
Burnouts are possible since the Haldex is completely turned off.
Outputs
Output2 The Controller has a RPM output for converting CAN-BUS RPM to Analog.

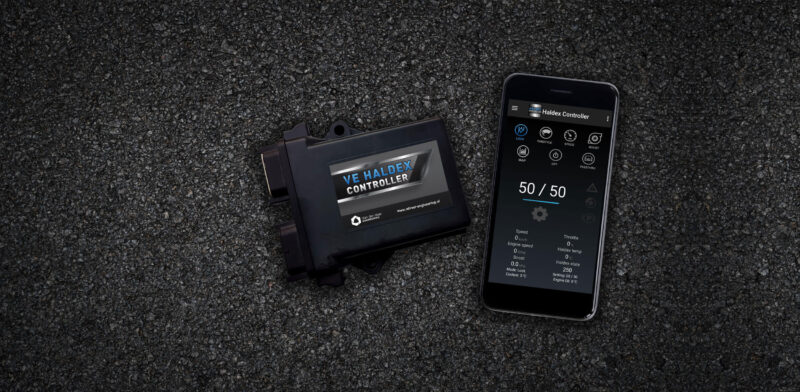

The Haldex Controller comes with a control unit a solid and waterproof housing that can be placed inside the trunk or outside the car if needed. Wiring loom set inline plug and play for all original 4Motion cars or a standalone wiring set that has long wires to connect all manually when there is no connection available. The App is free and available in the App store.
The App will show live information about the Haldex system like how much torque is transmitted to the rear wheels. The App interface is also used to change all settings in the controller and to create Haldex configurations and maps.
The Haldex Controller does not replace the existing Haldex Controller unit and can only be used with a fully working existing haldex controller.
We are not responsible for the use or misuse of this product, all support inquiries must be addressed through the original brand HQ directly, Mabotech labs is not responsible for any damage incurred related or not to the use of this product.
